Tuitorial : Negative Bionomial modeling

Modeling Failed Milkings Using a Truncated Negative Binomial Model in R

📘 Introduction

In precision dairy management, robotic milking systems generate a wealth of data — from milk yield and milking frequency to failure events. One interesting application of statistical modeling in this context is estimating the pattern of failed milkings over time.

Failures in robotic milking (for instance, when a robot fails to attach correctly or a cow refuses milking) are count data, often overdispersed (variance greater than the mean) and truncated (e.g., robots can’t have negative failures, and sometimes zero failures aren’t recorded).

The Truncated Negative Binomial (TNB) model provides a powerful way to model such data, accounting for both overdispersion and truncation.

🐄 Use Case: Failed Milkings per Week

Let’s imagine a scenario where we want to analyze the number of failed milkings per week for a specific cow being milked by a particular robot.

For example:

• We have 10 weeks of data for Cow #124.
• Each week, the robot records the number of failed milkings.
• Occasionally, data with zero failures is not logged (a typical truncation case).

To demonstrate this, we’ll simulate such data using Monte Carlo simulation in R.

🔢 Step 1: Simulating Failed Milking Data

We’ll assume that the underlying process follows a negative binomial distribution, but that we only observe values greater than zero (i.e., truncated at 0).

# Load required libraries
library(VGAM)     # for truncated negative binomial
library(dplyr)
library(ggplot2)

set.seed(123)

# Parameters
N_WEEKS <- 1000          # number of simulated weeks
MU <- 2.5                # mean failed milkings
SIZE <- 1.5              # dispersion parameter

# Generate negative binomial data
failures <- rnbinom(N_WEEKS, size = SIZE, mu = MU)

# Apply truncation (remove zeros)
failures_trunc <- failures[failures > 0]

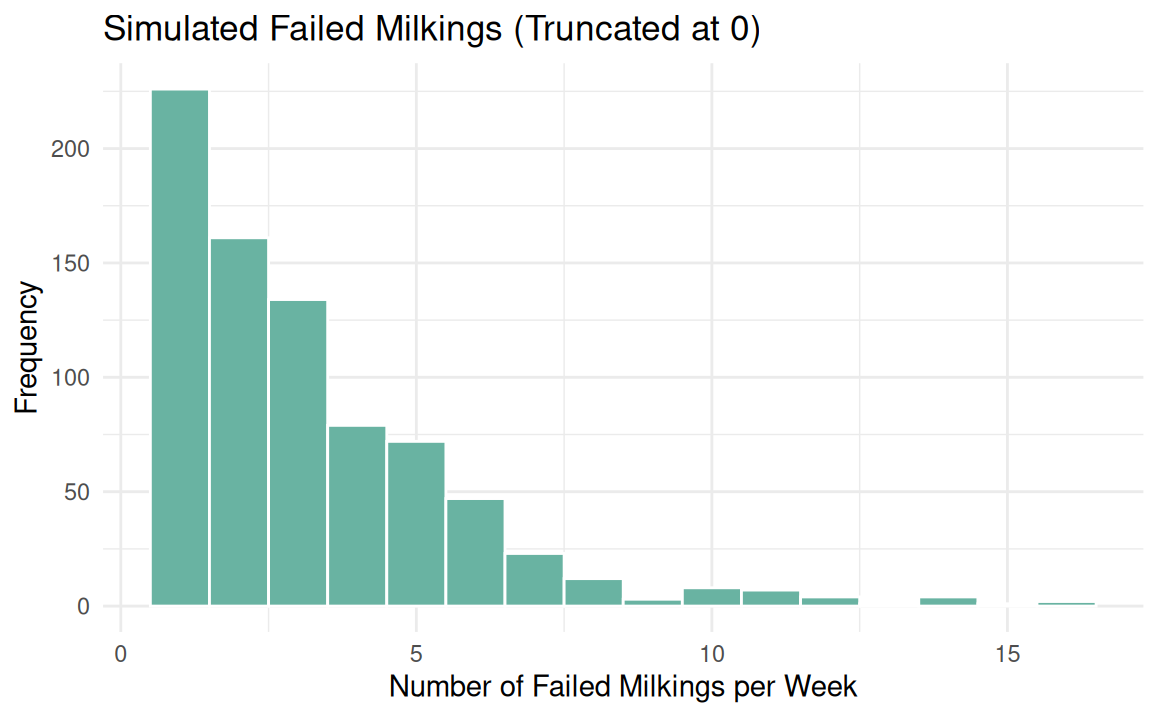

# Visualize
df <- data.frame(Failures = failures_trunc)
ggplot(df, aes(x = Failures)) +
  geom_histogram(binwidth = 1, fill = "#69b3a2", color = "white") +
  theme_minimal() +
  labs(title = "Simulated Failed Milkings (Truncated at 0)",
       x = "Number of Failed Milkings per Week",
       y = "Frequency")

Step 2 Fitting the truncated Negative binomial model

We have not fiitted any explanatory variables here so, we will get only estimated mean and dispersion parameter under trancation form this

# Fit the model
nb <- glmmTMB(
  Failures ~ 1,
  family = truncated_nbinom2,
  data = df
)
summary(nb)

when we examine the summary: we get

Model Evaluation

Here, we can see the dispersion parameter:

which is very close to the value we used to generate the data:
size = 1.5

We also obtained the model intercept, which represents the modeled mean (on the log scale):

Exponentiating this intercept gives us the modeled mean number of failures per week (as fitted to generate the simulation):

✅ Conclusion:
The fitted truncated negative binomial model successfully recovered the underlying parameters (mean ≈ 2.5 and dispersion ≈ 1.5) used to simulate the data.

Model Validation Using Simulated Residuals

Now we can move a little bit further to validate our model by examining the residuals using the DHARMa package in R.

library(DHARMa)
res <- simulateResiduals(model_tnb)
plot(res)

Why Use Simulated Residuals?

In traditional linear regression, residuals (the difference between observed and predicted values) are expected to be normally distributed with constant variance.
However, this assumption breaks down for non-Gaussian models, such as Poisson, negative binomial, or truncated distributions.
In these cases, raw residuals can be misleading because they:

• Are not normally distributed,
• Depend on the fitted mean–variance relationship,
• Cannot easily be compared across observations.

The Advantage of Simulated Residuals (DHARMa)

The DHARMa package overcomes these limitations by generating simulated (standardized) residuals through a Monte Carlo process:

1. It simulates new response values from the fitted model many times.
2. For each observed value, it computes the proportion of simulated values that are smaller.
3. These proportions are then converted to a uniform (0–1) distribution.

If the model is correctly specified, the simulated residuals should follow a uniform distribution.
Any systematic deviation from uniformity (for example, clustering, skewness, or trends with predictors) indicates a model misfit.

Benefits Over Traditional Residuals

✅ In summary:
Using simulated residuals allows for a more robust and interpretable diagnostic check, especially when dealing with count data, non-normal error structures, or truncated distributions like our truncated negative binomial model.

@misc{neupane2025, title = {Using Truncated Negative Binomial Models for Analyzing Failed Milkings in Dairy Robots: A Monte Carlo Simulation Approach}, author = {Neupane, Rajesh}, year = {2025}, howpublished = {Rajesh neupane Blog}, url = {https://rajesh-neupane.github.io/} }
